Wossner K4048DA-3 Piston Kit - 2016-2025 Yamaha YXZ1000R 4-Stroke Forged

Wossner K4048DA-3 Pro Series Forged 4-Stroke Piston Kit

Push the limits of your Yamaha YXZ1000R with the Wossner K4048DA-3 Piston Kit. Specifically engineered for the 2016-2025 Yamaha YXZ1000R, this Pro Series kit is designed to provide professional-grade durability and performance. At Moto-House MX, we understand that UTV engines face extreme loads and high sustained RPMs, which is why we offer Wossner’s precision-forged components to ensure your triple-cylinder powerhouse remains reliable and fast.

Forged from high-silicon aerospace-grade aluminum alloy, this piston features Wossner's signature double-bridged forging for maximum structural integrity. The design includes enhanced piston pin oiling slots, radial boss machining, and annular grooves to ensure superior wrist pin lubrication during aggressive driving. With a 13.0:1 compression ratio, this kit maintains optimal combustion efficiency while the skirt coating reduces internal friction for a quieter, cooler-running engine and a faster break-in period.

Top Features: Wossner K4048DA-3 Piston Kit

• Standard Size A (79.95mm Piston): Precision-engineered for the standard 80.00mm bore, maintaining tight tolerances for a quiet engine.
• Pro Series Forged Design: High-strength double-bridged forging built to withstand the rigors of high-performance UTV racing.
• Advanced Lubrication: Radial boss machining and enhanced oiling slots provide critical lubrication to the wrist pin.
• Skirt Coating & Ring Land Treatment: Reduces friction and improves ring seal for better oil control and longevity.

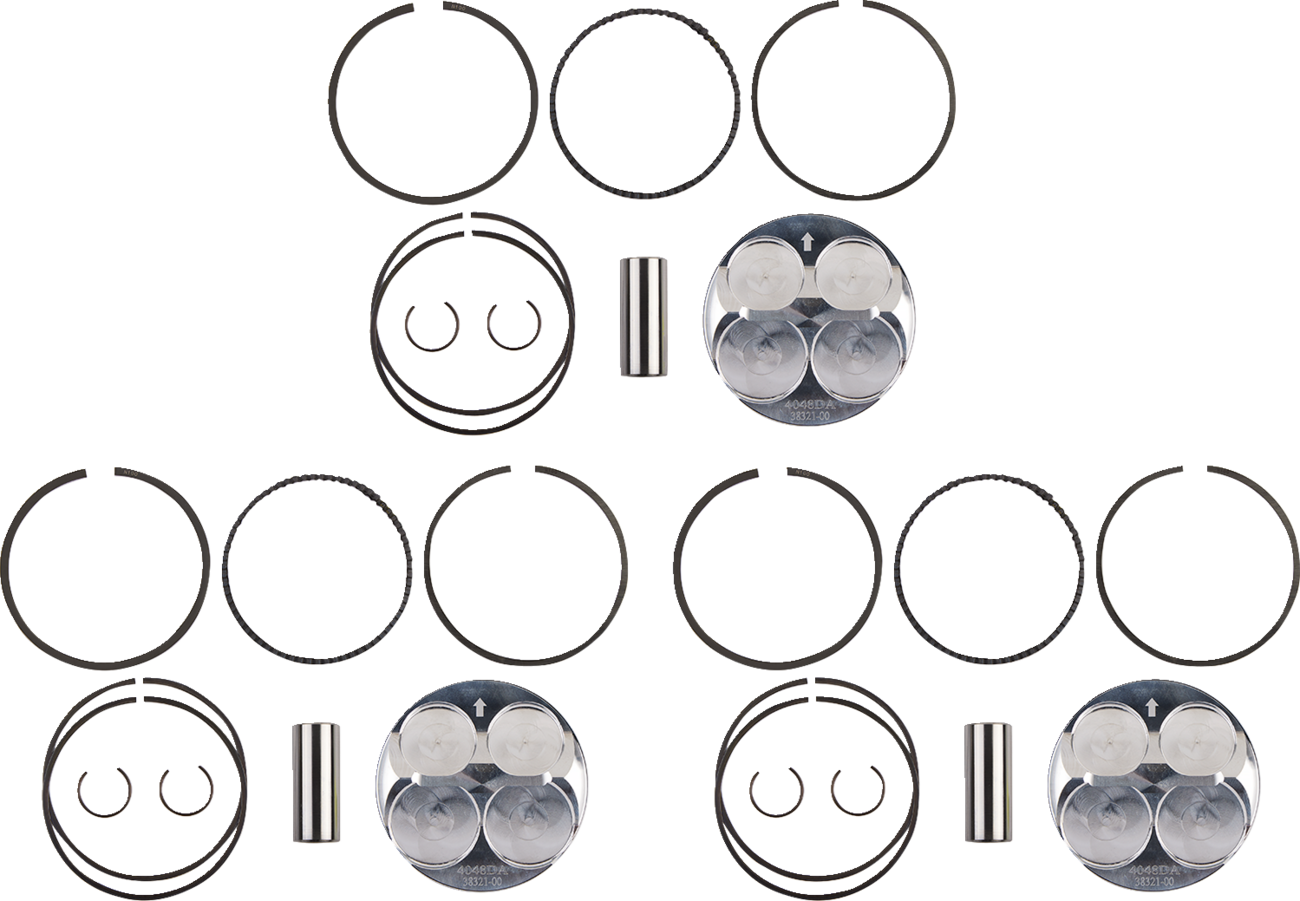

• Complete Assembly: Kit includes the forged piston, high-performance rings, wrist pin, and pin locks.

Expert Pro-Tip: The Yamaha YXZ1000R is a high-performance 3-cylinder machine. For a complete and balanced engine refresh, it is highly recommended to replace all three pistons at the same time. Always verify your cylinder cross-hatch and ensure your oil pump is in prime condition to support the high-RPM demands of this Pro Series kit.

Fitment List

Year Range	Vehicle Brand	Vehicle Model & Type
2016-2025	Yamaha	YXZ1000R / SS / SE (UTV)

Frequently Asked Questions

Q: Is this kit for one piston or all three?
A: This part number represents one (1) piston kit. For a complete YXZ1000R engine rebuild, you will need to purchase three (3) kits.

Q: What is the benefit of the 13.0:1 compression ratio?
A: This compression ratio is designed to maximize power while remaining compatible with high-quality pump fuel or racing fuel, depending on your tuning and environment.

Q: Does this work with turbochargers?
A: While Wossner forged pistons are exceptionally strong, always consult with your engine builder regarding compression ratios when running high-boost turbo applications.

Recommended Pairings

• Complete Top End Gasket Set: Ensure a leak-free seal for your YXZ triple-cylinder rebuild.
• High-Performance Synthetic Oil: Protect your new forged pistons with oil designed for high-RPM 4-stroke UTV engines.
