Wossner 8196DA Piston Kit - 2000-2026 Kawasaki KX65 Suzuki RM65 2-Stroke

Wossner 8196DA Premium Forged 2-Stroke Piston Kit - Standard Size A

Give your young racer the competitive edge with the Wossner 8196DA Piston Kit. Specifically engineered for the Kawasaki KX65 and Suzuki RM65 engine platforms, this Standard Size A forged kit is the professional choice for restoring Factory Quality power and reliability. At Moto-House MX, we know that 65cc racing engines spend most of their life at high RPM, and Wossner’s aerospace-grade components are built to handle that stress better than standard cast pistons.

Forged from aerospace-grade aluminum alloy, this piston offers superior structural integrity and thermal resistance, making it ideal for the intense heat of motocross racing. The permanent skirt coating is a vital feature for small-bore engines, reducing internal friction and piston rock for a smoother, quieter engine. With optimized machining for lightness and reinforced strength in the crown, the 8196DA ensures your mini-cycle remains reliable and fast moto after moto.

Top Features: Wossner 8196DA Piston Kit

• Standard Size A (44.45mm Piston): Precision-engineered for the standard 44.50mm bore to restore original factory tolerances and compression.
• Aerospace Forged Alloy: Premium aluminum construction provides maximum durability for high-revving youth motocross engines.
• Low-Friction Skirt Coating: Permanent coating reduces wear on cylinder walls and ensures a more efficient break-in period.
• Single-Ring Racing Design: Optimized for reduced drag and maximum high-RPM efficiency in the 65cc class.

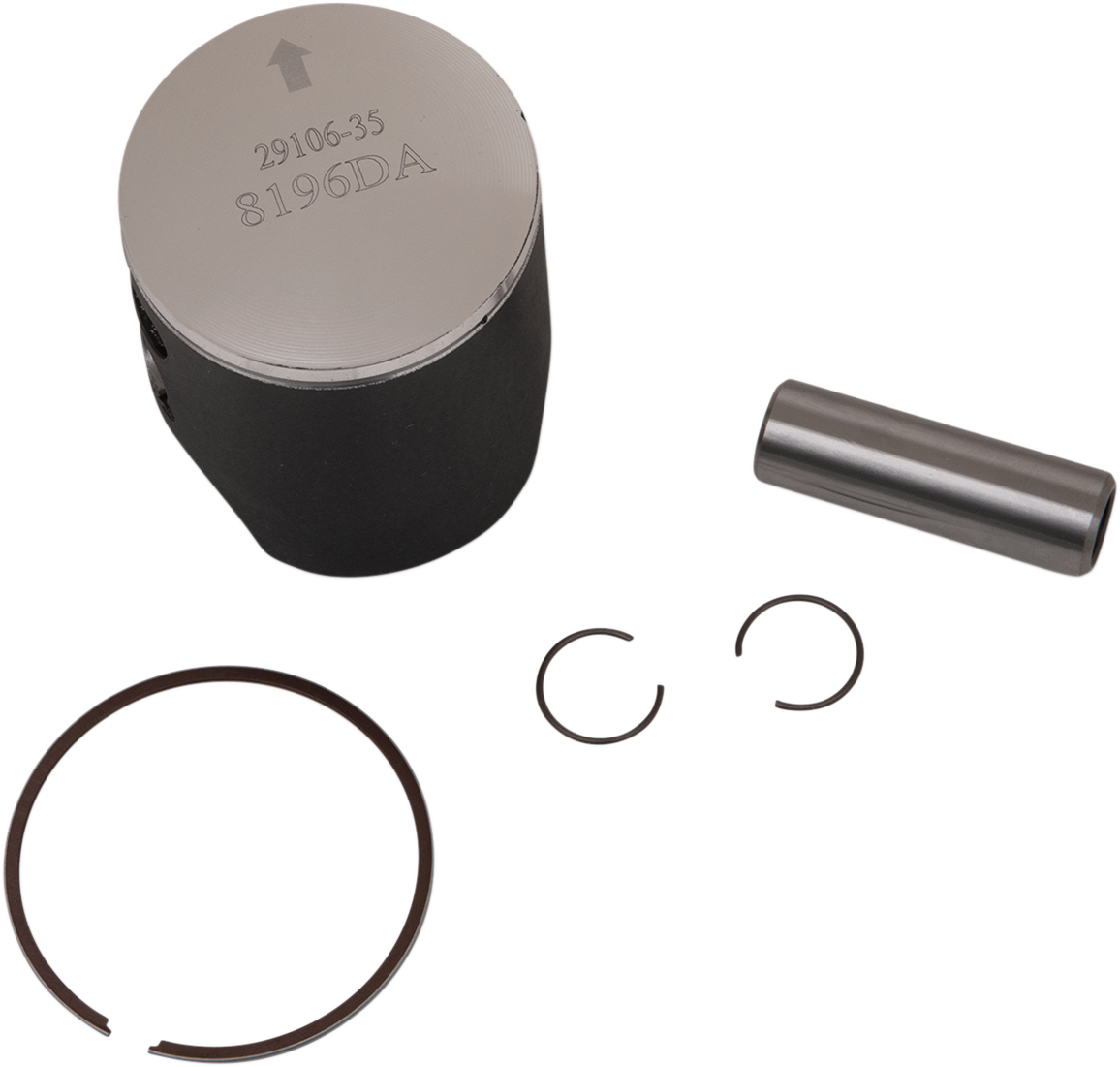

• Complete Assembly: Kit includes the forged piston, high-performance ring, wrist pin, and clips.

Expert Pro-Tip: The KX65 engine is a legendary platform that has remained largely unchanged because of its reliability. However, high-level youth racing requires frequent top-end refreshes. When installing the 8196DA, always check the cylinder for signs of wear or vertical scoring. Using a new small-end wrist pin bearing and a fresh top-end gasket kit is essential for preventing mechanical failure during a race.

Fitment List

Year Range	Vehicle Brand	Vehicle Model & Size
2000-2026	Kawasaki	KX65
2003-2005	Suzuki	RM65

Frequently Asked Questions

Q: Is this a Standard Size piston?
A: Yes, this is the 44.45mm piston designed for the standard 44.50mm bore. It is the ideal choice for new cylinders or those in good condition with minimal wear.

Q: Does this kit include the wrist pin bearing?
A: No, the kit includes the piston, ring, pin, and clips. We highly recommend purchasing a new high-quality small-end bearing separately whenever you perform a top-end refresh.

Q: Why use a forged piston in a 65cc bike?
A: Forged pistons are much stronger than cast pistons. In a high-revving 65cc race engine, a forged piston provides better resistance to cracking and can withstand the heat of long motos more effectively.

Recommended Pairings

• Top End Gasket Kit: Essential for a professional, leak-free engine rebuild.
• High-Quality 2-Stroke Racing Oil: Protect your new forged piston with premium synthetic lubrication.

Keep your mini-cycle at peak performance. Buy now at Moto-House MX!
