WISECO 0903-0307 Pro-Lite 66.40mm Standard Bore Top End Piston & Gasket Kit for Honda CR250R

WISECO — 0903-0307 Pro-Lite Standard 66.40mm Forged 4032 Aluminum Alloy Top-End Rebuild Piston, Ring, and Gasket Kit for Honda CR250R 2-Stroke Dirt Bikes (2002-2004) — Standard Bore Kit

When you are attacking deep MX track ruts, pinning the throttle wide open across technical singletrack, or listening for that crisp powerband response out of a corner, maintaining peak combustion pressure inside your two-stroke engine is vital. The WISECO 0903-0307 High Performance Piston Kit with Gaskets for 2-Stroke Piston Kit with Gaskets system is a premium-grade racing top-end package engineered precisely to restore lost compression and factory throttle response. Purpose-built to handle intense thermal dynamics and extreme high-RPM demands, this complete standard-bore rebuild kit drops directly into legendary motocross platforms—specifically the 2002 to 2004 Honda CR250R series—bringing unparalleled structural durability and explosive power delivery to your legendary 250cc two-stroke power plant.

The core structural breakthrough of this high-performance racing piston kit is its premium forged construction. While stock or lower-tier aftermarket cast pistons are inherently brittle and prone to catastrophic failure under severe heat, Wiseco precision-forges each Pro-Lite piston from high-density 4032 aluminum alloy. This advanced manufacturing process compresses the aluminum's grain structure, creating an exceptionally strong component that handles high compression ratios and intense off-road abuse with ease. Engineered with standard bore dimensions of 66.40 mm, a precise 66.36 mm piston diameter, and built to match the stock 72.00 mm stroke length, this standard-size piston guarantees a perfect mechanical interface inside your cylinder bore. This complete kit simplifies your workshop overhaul by containing everything needed for a full top-end refreshing in one box: the forged piston, high-tension racing rings, a wrist pin, locking circlips, and a premium top-end gasket kit.

Every internal component in this kit is matched to strict tolerances to minimize friction and maximize performance. The lightweight Pro-Lite piston crown design is optimized to enhance scavenging efficiency and fuel-air mixture flow, resulting in faster throttle response and cleaner acceleration through the powerband. To ensure a completely secure and leak-free engine seal, Wiseco pairs this piston with a comprehensive, heat-resilient top-end gasket kit designed to withstand extreme combustion pressures without weeping or blowing out. It is important to note that Wiseco's high-performance rings are specifically engineered for their unique ring groove profiles and are not interchangeable with other ring types, ensuring that the ring-to-piston face fitment delivers a tight, reliable compression seal over hours of hard riding.

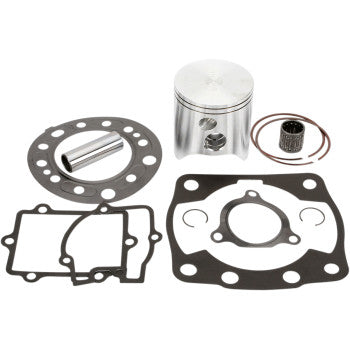

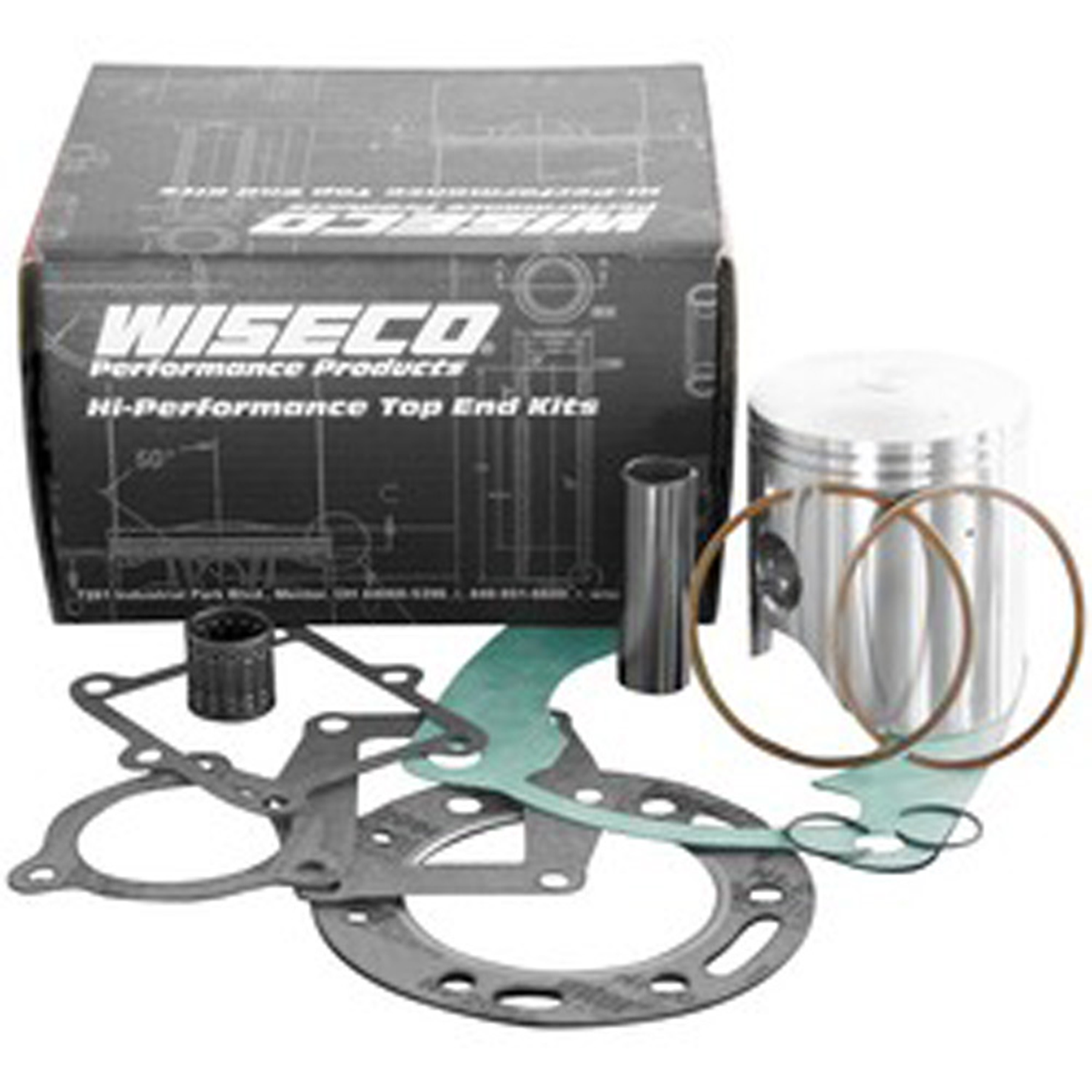

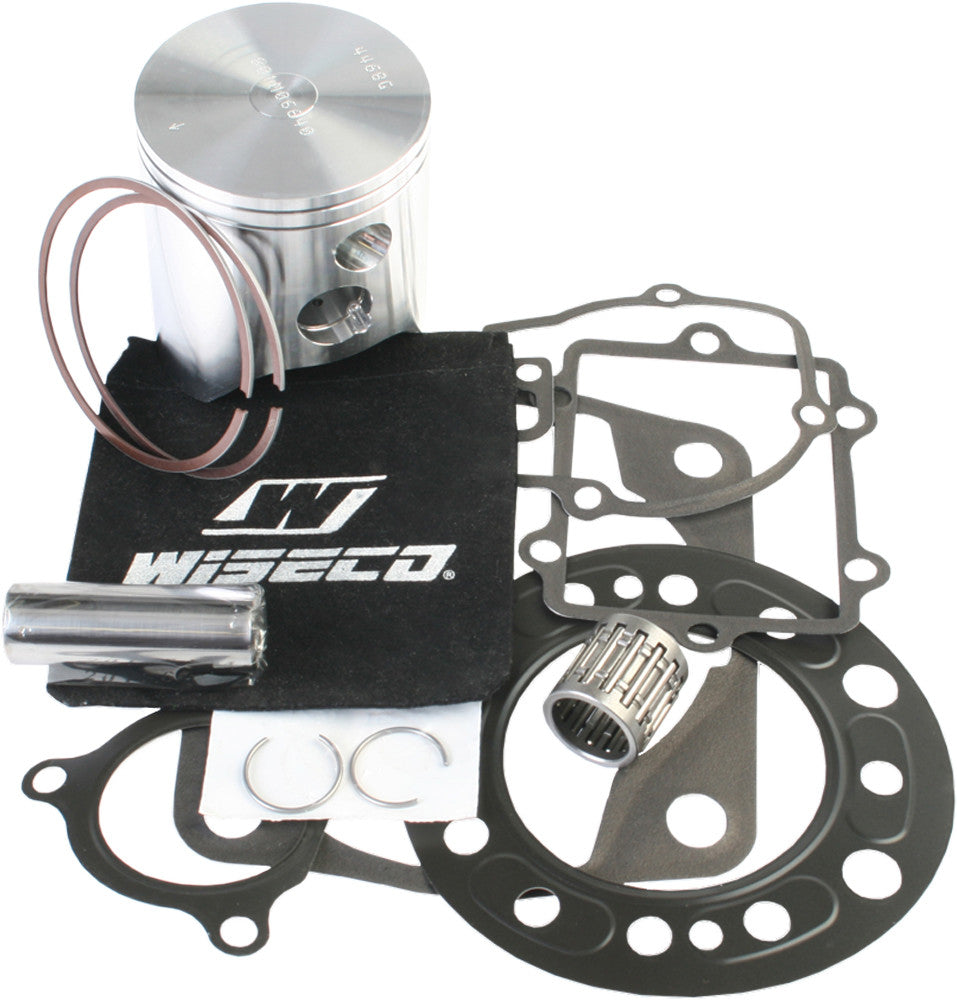

• Complete Top-End Rebuild Solution: Conveniently packs the forged piston, premium piston rings, wrist pin, dual circlips, and matching top-end gaskets together for a total engine refresh.
• High-Strength Forged 4032 Alloy: Forged from structural 4032 aluminum alloy to deliver superior tensile strength, excellent thermal conductivity, and resistance to fatigue at high RPMs.
• Standard Bore Fitment Design: Precision-machined to standard 66.40 mm bore specifications, making it an ideal drop-in replacement for stock-diameter cylinders.
• Lightweight Pro-Lite Architecture: Optimized piston weight reduces reciprocating mass within the crankcase, significantly sharpening throttle response and decreasing engine vibration.
• Premium Quality Seals & Gaskets: Includes top-tier head, base, and exhaust gaskets designed to prevent compression loss and eliminate coolant leaks into the combustion chamber.
• Two-Stroke Optimized Performance: Specifically engineered to enhance port scavenging and withstand the intense firing intervals unique to high-output 250cc dirt bike engines.

Moto-House MX Pro Tip:

Two-stroke top ends are wear items; letting your piston go past its service hours causes skirt fatigue, ring blow-by, and can lead to a shattered piston that ruins your cylinder liner and crankshaft assembly. Doing a proactive top-end refresh preserves your vintage machine's power and saves you thousands in engine work. Installation Tip: Before installing the piston onto your connecting rod, thoroughly clean your cylinder bore and check it for any deep scoring or ovaling. When installing the piston rings onto the Wiseco piston, take your time to avoid scratching the non-coated aluminum skirts, and always ensure the ring gaps are perfectly centered over the locating pins in the ring grooves. Assembly Safety: Always place a clean rag over your open crankcase openings before installing the wrist pin circlips to prevent a dropped clip from falling down into your bottom-end bearings.

Engine Rebuild Spec	Material & Dimension Tech	Vehicle Platform Fitment
Pro-Lite Top End Rebuild Kit	Forged 4032 Aluminum Alloy Core	Honda CR250R Motocross (2002)
66.40 mm Standard Bore / 249 cc	66.36 mm Piston / 72.00 mm Stroke	Honda CR250R Motocross (2003)
Complete Kit with Top-End Gaskets	Non-Coated Skirt / Strict Tolerances	Honda CR250R Motocross (2004)

FAQ Questions

Q) Can I use OEM Honda piston rings or other aftermarket brands on this Wiseco piston?
A) No. Wiseco high-performance pistons are precision-machined with proprietary ring groove dimensions. They can only be fitted with the specific Wiseco rings included in this kit to ensure a proper seal and avoid ring-to-piston binding.

Q) Does this engine rebuild package come with a new cylinder sleeve included?
A) No. This kit includes the top-end piston components and all necessary sealing gaskets. If your Honda CR250R cylinder is severely worn, out of round, or damaged, any replacement cylinder sleeves or replating work must be handled separately.
