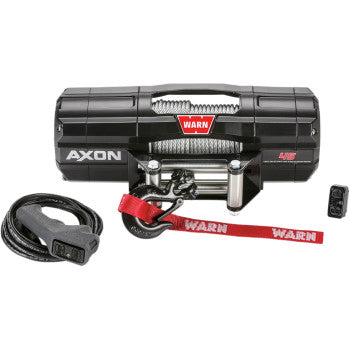

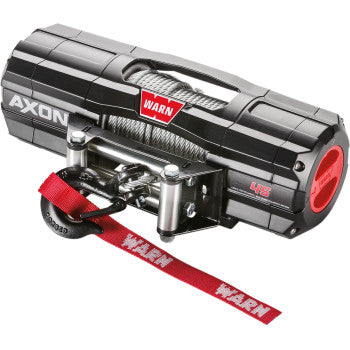

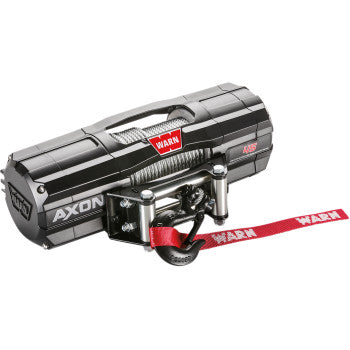

WARN 101145 Axon 45 Power Winch — 4500 lb Capacity, 50-Foot Wire Rope for Can-Am Defender & Yamaha RMAX

WARN — 101145 Axon 45 Power Winch, Heavy-Duty 4,500 lb Pulling Capacity, 50' Aircraft-Grade Wire Rope, IP68 Waterproof Motactor, and All-Metal 3-Stage Planetary Geartrain for Utility UTVs and Side-by-Sides

When you are deep in the backcountry, navigating technical mountain trails, or managing heavy-duty recovery tasks on the ranch, you need a recovery system that refuses to back down. The WARN 101145 Axon 45 Power Winch redefines powersports recovery by combining a massive 4,500 lb pulling capacity with a groundbreaking digital backbone. Built to handle the massive frame weights of modern utility and sport side-by-sides—including the Can-Am Defender series, Yamaha Wolverine RMAX2/RMAX4 platforms, and Kubota RTV-XG850 setups—this premium winch provides industrial-grade structural rigidity and relentless pulling power when you need it most.

At the center of the AXON lineup is the revolutionary Motactor™—a state-of-the-art configuration that integrates the high-performance electric motor and the mechanical contactor into a single, compact structural housing. This drastically cuts down on complex vehicle wiring layouts while cutting installation times in half. Built to survive extreme off-road environments, this winch features full IP68-rated waterproof construction to completely lock out mud, deep creek crossings, and winter slush. For maximum internal stability, the AXON 45 boasts a rugged one-piece tie plate structure that significantly increases structural alignment compared to conventional tie bars. The system relies on a smooth, all-metal three-stage planetary geartrain, stainless-steel assembly fasteners, and a premium black powder-coated finish designed to combat severe trail corrosion. Equipped with 50 feet of high-strength 1/4" steel wire rope, an advanced load-holding mechanical brake, and a hublock-style manual clutch, this winch is engineered to handle maximum recovery stresses cleanly.

• Revolutionary Motactor Design: Merges the electric motor and digital control contactor into a single compact unit for quick, streamlined vehicle wiring.
• 4,500 lb Rated Line Pull: Provides immense mechanical pulling power to easily recover heavy utility UTVs, side-by-sides, and working multi-row vehicles.
• IP68 Waterproof Construction: Industrial-grade casing seals tightly against submersion, heavy mud, and sand to keep internal electrical components flawless.
• Aircraft-Grade Wire Rope: Equipped with 50 feet of durable 1/4" steel wire cable paired with a rugged roller fairlead for abrasion resistance on rock and wood.
• Legendary Hublock Clutch: Advanced manual dial design makes transitioning between smooth freespool manual pulling and locked mechanical engagement effortless.
• Rigid One-Piece Tie Plate: Replaces weak legacy tie bars with an all-metal backbone that distributes heavy load stresses evenly to prevent frame twisting.

Moto-House MX Pro Tip:

Modern side-by-sides like the Can-Am Defender and Yamaha Wolverine RMAX are incredibly capable, but when they get framed out in deep mud or high-centered on rocks, their loaded weight can easily exceed 2,500 pounds. A high-tier 4,500 lb winch is the absolute baseline standard for safe vehicle recovery. Installation Tip: Because the AXON integrates the contactor directly into the motor housing, you don't have to find a dry mounting spot under the hood for a separate solenoid box. Make sure your vehicle-specific winch mounting plate is fully torqued to the chassis before bolting down the winch. Operation Advice: When pulling with steel wire rope, always wear heavy leather utility gloves to protect your hands from metal burrs or wire splinters. Try to avoid spooling the cable up in a single overlapping bunch on the drum; guiding the wire rope back onto the spool evenly under light tension will maintain neat layering and ensure maximum structural lifespan for the internal planetary gears.

Winch Spec	Line & Control	Primary Fitment
4,500 lb Load Capacity	50' Steel Wire Rope (1/4")	Can-Am Defender HD5 / HD7 / HD8 / HD9 / HD10
IP68 Waterproof Motactor	Hublock Manual Clutch	Yamaha Wolverine RMAX2 / RMAX4 / X2 / X4
3-Stage Planetary Gear	Load-Holding Automatic Brake	Kubota RTV-XG850 Sidekick Models

FAQ Questions

Q) What makes the AXON different from a traditional WARN VRX or older winch model?
A) The AXON features an industry-first "Motactor" design, which combines the motor and the electrical contactor relay into one single waterproof housing. This eliminates the need to route thick battery cables to an external solenoid box, simplifying the installation layout and enhancing total system reliability under water.

Q) Does this winch package include a vehicle-specific mounting plate or bumper?
A) No, this is a universal UTV recovery package that includes the winch, wire line, fairlead, hook, and wiring. Because side-by-side frame layouts vary significantly between a Can-Am Defender and a Yamaha RMAX, a machine-specific winch mounting plate is required to secure it to your bumper or frame.
