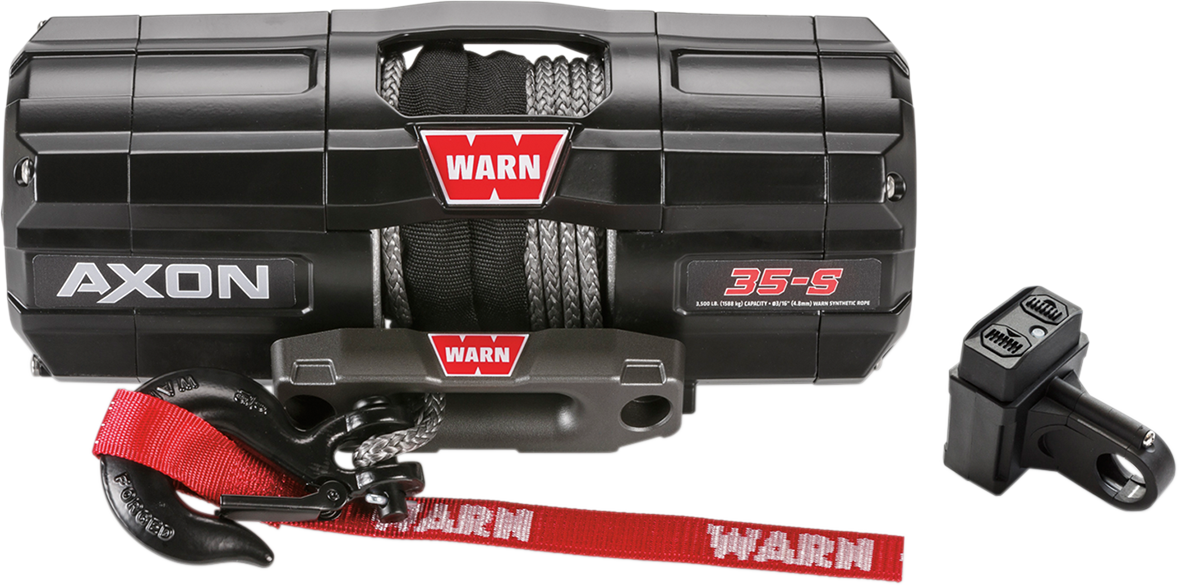

WARN 101130 Axon 35-S Power Winch — 3500 lb Capacity, 50-Foot Synthetic Rope for Can-Am Outlander

WARN — 101130 Axon 35-S Power Winch, Heavy-Duty 3,500 lb Pulling Capacity, 50' Lightweight Synthetic Rope, IP68 Waterproof Motactor, and All-Metal 3-Stage Planetary Geartrain for Premium ATVs and Utility UTVs

When you are buried deep in muddy ruts, traversing technical rock sections, or handling tough logging chores on the property, you need a premium recovery system that delivers absolute confidence without weighing down your front end. The WARN 101130 Axon 35-S Power Winch completely redefines powersports recovery by combining a reliable 3,500 lb pulling capacity with a groundbreaking digital architecture and lightweight synthetic line. Built to handle the massive frame weights of modern high-displacement utility ATVs and mid-size side-by-sides—including the Can-Am Outlander 650/850/1000 series (including Max, X mr, and 6x6 platforms), Commander setups, and Kubota RTV-XG850 lines—this premium winch provides unmatched structural rigidity when your vehicle is stuck fast.

At the center of the AXON lineup is the revolutionary Motactor™—a state-of-the-art configuration that integrates the high-performance electric motor and the mechanical contactor into a single, compact structural housing. This drastically cuts down on complex vehicle wiring layouts while cutting installation times in half. Built to survive extreme off-road environments, this winch features full IP68-rated waterproof construction to completely lock out mud, deep creek crossings, and winter slush. For maximum internal stability, the AXON 35-S boasts a rugged one-piece tie plate structure that significantly increases structural alignment compared to conventional tie bars. The system relies on a smooth, all-metal three-stage planetary geartrain, stainless-steel assembly fasteners, and a premium black powder-coated finish designed to combat severe trail corrosion. Equipped with 50 feet of high-strength, easy-to-handle 3/16" synthetic rope, an advanced load-holding mechanical brake, and a hublock-style manual clutch, this winch is engineered to handle maximum recovery stresses cleanly.

• Revolutionary Motactor Design: Merges the electric motor and digital control contactor into a single compact unit for quick, streamlined vehicle wiring.
• 3,500 lb Rated Line Pull: Provides immense mechanical pulling power to easily recover large utility ATVs, heavy mud quads, and mid-size working UTVs.
• Premium Synthetic Rope: Includes 50 feet of lightweight, flexible 3/16" synthetic line paired with a smooth hawse fairlead for safer, easier handling on the trail.
• IP68 Waterproof Construction: Industrial-grade casing seals tightly against submersion, heavy mud, and sand to keep internal electrical components flawless.
• Legendary Hublock Clutch: Advanced manual dial design makes transitioning between smooth freespool manual pulling and locked mechanical engagement effortless.
• Rigid One-Piece Tie Plate: Replaces weak legacy tie bars with an all-metal backbone that distributes heavy load stresses evenly to prevent frame twisting.

Moto-House MX Pro Tip:

Modern high-horsepower ATVs like the Can-Am Outlander 1000 or X mr mud machines are incredibly heavy, and when they are suctioned into bottomless muskeg or high-centered on timber, their effective weight doubles. Choosing the "S" version with synthetic rope gives you the massive benefit of a line that won't kink, develop sharp burrs, or store dangerous kinetic energy under load. Installation Tip: Because the AXON integrates the contactor directly into the motor housing, you don't have to find a dry mounting spot under the plastics for a separate solenoid box. Make sure your vehicle-specific winch mounting plate is fully torqued to the chassis before bolting down the winch. Operation Advice: Synthetic rope is safer and much easier to manage than steel cable, but it hates sharp edge friction. If you have to pull over a sharp rock or log, use a tree trunk protector strap or slide line sleeve to safeguard the rope fibers. Always wash your synthetic line with clean water after a muddy ride to rinse out grit that can prematurely wear down the fibers from the inside out.

Winch Spec	Line & Control	Primary Fitment
3,500 lb Load Capacity	50' Synthetic Rope (3/16")	Can-Am Outlander 650 / 850 / 1000 & Max
IP68 Waterproof Motactor	Hublock Manual Clutch	Can-Am Outlander X mr / XT-P / DPS / 6x6
3-Stage Planetary Gear	Load-Holding Automatic Brake	Kubota RTV-XG850 Sidekick & Commander

FAQ Questions

Q) What is the difference between the AXON 35 and this AXON 35-S model?
A) The standard AXON 35 comes equipped with a steel wire rope and a roller fairlead, whereas the AXON 35-S includes a premium lightweight synthetic rope and a smooth aluminum hawse fairlead. Synthetic rope reduces the overall winch weight by several pounds, is easier to handle, and does not develop sharp metal splinters.

Q) Does this winch package include a vehicle-specific mounting plate?
A) No, this is a universal ATV/UTV recovery package that includes the winch, synthetic line, hawse fairlead, hook, and handlebar control switch wiring. Because chassis configurations vary significantly between a Can-Am Outlander and a Kubota Sidekick, a machine-specific winch mounting plate is required to secure it to your frame.
