Kawasaki KX85 01-13 Wiseco Bottom End Kit - Crankshaft, Bearings and Seals, Gaskets

Regular price $246.17 USD
Regular price $311.61 USD Sale price $246.17 USD
Sale Sold out

Kawasaki KX85 01-13 Wiseco Bottom End Kit - Get you bike back on the track !!!

When it comes to performance and quality in motorcycle pistons and crankshaft the first name you think of is Wiseco. Started in 1940 by Clyde Wiseman, 78 years later, Wiseco is a world leader in OEM replacement and performance pistons for all types of motorsports. Now, with all the years of experience, Wiseco has what you need to get your 4-stroke of 2-str4oke ready to rip.or back to life.

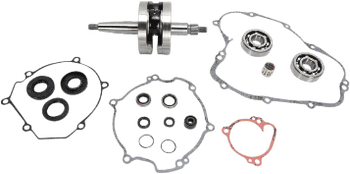

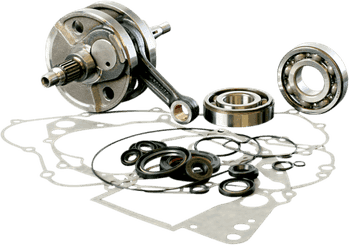

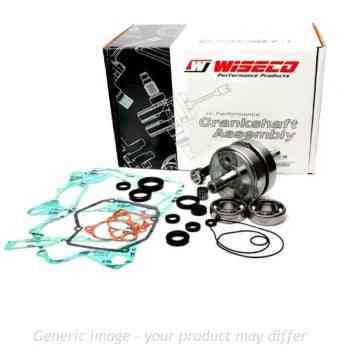

Kawasaki KX85 01-13 Wiseco Bottom End Kit:

  • Crankshaft kits include crankshaft, top end bearing, premium main bearings, and a complete bottom end gasket set that includes all seals and gaskets needed to do the job
  • Crankshafts are factory assembled and precision trued to OEM specifications
  • Double-forged Wiseco connecting rods maintain superior dimensional consistency through improved grain flow
  • Shot-peening eliminates residual stresses and smoothly blends the rod forging surfaces
  • Corrosion-resistant surface treatment
  • Top and bottom end rod bores case hardened to 58-62 RC to optimize bearing running surface
  • Crank pin bearing radial running clearance is optimized to ensure maximum performance
  • Precision honing ensures ultra round bearing surface
  • Precision-engineered oiling slots maximize rod strength and bearing life
  • Double-drilled small ends provide the piston pin with extra lubrication and cooling, reducing distortion of top end due to thermal transfer from the piston
  • Silver-coated bronze phosphor thrust washers, with dimpled design to increase oil retention and reduce friction between rod and washer interface
  • Crank pin bearings are manufactured from the highest quality hot rolled steel; case-hardened to 58-62 RC
  • Caged needle roller bearings provide the highest possible rpm
  • Precision-machined crank webs
  • Wiseco complete gasket kits are made from premium materials for maximum sealing and reliability; all bearings are OEM-quality for reliability and performance


  • Kawasaki KX85 01-05 / Part Number WPC119
  • Kawasaki KX85 06-13 / Part Number WPC164

More KX85 performance products check out Kawasaki KX85 Performance Section
